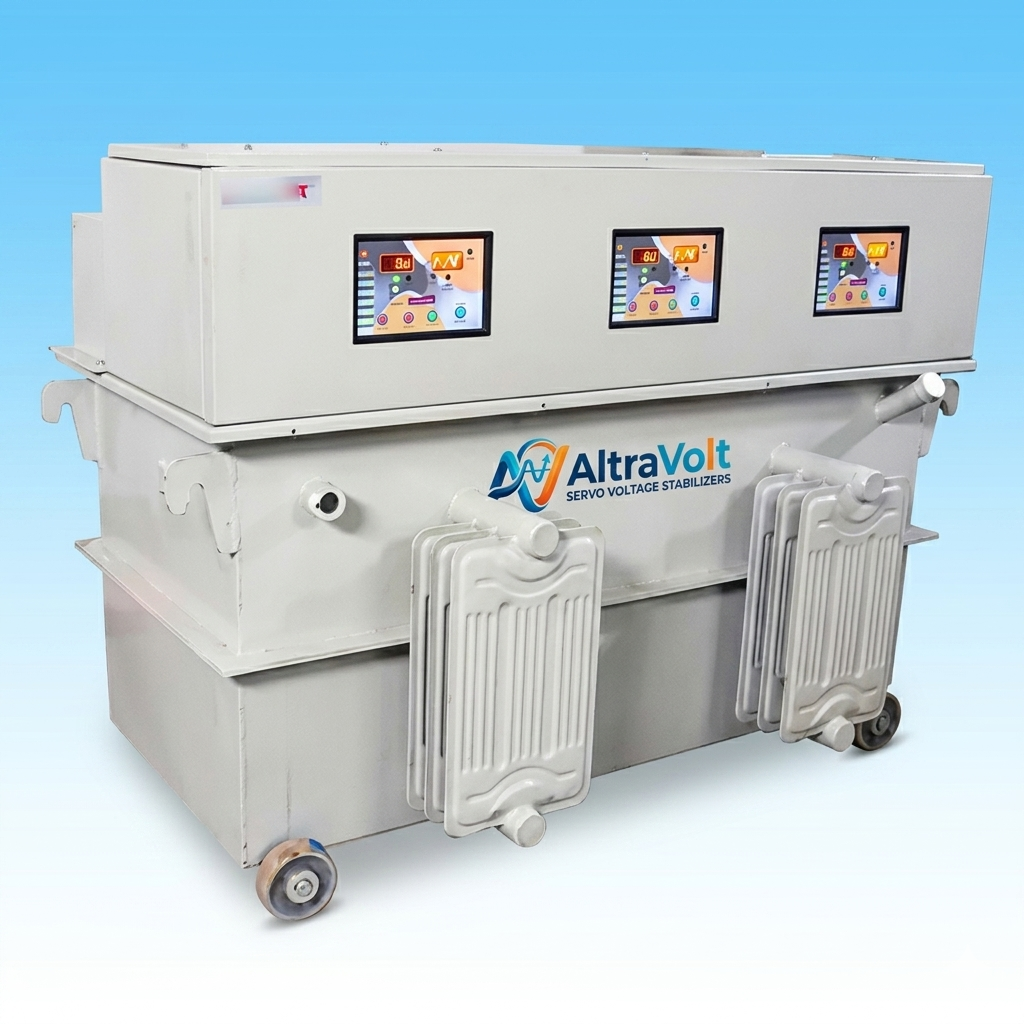

by AltraVolt Power
Extremely high‑power voltage regulation for large‑scale industrial operations, multi‑storey buildings, and mission‑critical facilities.
Up to 98% efficiency reduces energy losses and operating costs.
Built-in MCB and thermal cut-off for complete safety.
Real-time voltage, current, and status monitoring.
Accurate and fast correction with zero hunting.
| Input Voltage Range | 160V – 280V (single phase) |
| Output Voltage | 230V ± 1% |
| Frequency | 50 Hz ± 5% |
| Power Rating | 150 KVA |
| Efficiency | > 98% |
| Regulation Speed | < 40 ms |
| Dimensions (W x D x H) | 1100 x 750 x 1400 mm |
| Weight | 420 kg |
| Cooling | Forced air with quadruple heavy‑duty fans and advanced thermal management |
| Mounting | Floor standing with heavy‑duty casters and anchor bolts |
| Display | LCD digital (volts, amps, status) |
| Operating Temperature | 0°C to 50°C |
| Relative Humidity | Up to 95% (non-condensing) |
| Protection Class | IP20 |
| Noise Level | < 78 dB |
